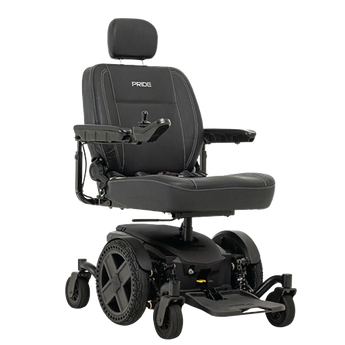

Jazzy® EVO 614HD

$5,549.00 $6,999.00
Shipping calculated at checkout.
Color: Black
Style: Jazzy® Series

Model #: Jazzy® EVO 614HD

Description

It’s time to put limited mobility where it belongs — on the sidelines.

When adventure calls at a moment’s notice, Jazzy EVO 614HD empowers you to pick up and go. That’s because it comes engineered with the capabilities that push boundaries of everyday life for the heavy-duty power wheelchair class, with a 450-pound weight capacity.

Here’s how the Jazzy EVO 614HD pushes the limits.

We introduced a new 4.88 mph top speed. Compared to the average person’s walking speed of around 2 mph, that’s cheetah-fast.

With a new 3” ground clearance and new 13.75” drive wheels, you sit higher and blaze over uneven terrain like you were born to do it.

Features

  • 450 lbs. weight capacity
  • Up to 4.88 mph
  • 22” turning radius
  • Up to 13 miles per charge at 450lbs, up to 21.5 miles per charge at 200lbs.
  • New! Depth-adjustable, limited recline memory foam high-back seat with headrest and single heavy-duty seat post allows the user to swivel
  • New! 13.75” perforated drive tires
  • New! 60-amp Dynamic LiNX Adjustable joystick speed dial enables you to adjust your speed comfort level
  • New! Removable matte finish color through shrouds and 6-colors
  • Flip-up, height adjustable foot platform
  • Full independent front and rear Active-Trac® ATX Suspension for enhanced performance over more varied terrain
  • In-line joystick mount
  • Convenient access to the controller and batteries while the user remains seated
  • HCPCS Code: Group 2: Heavy-Duty (K0824/K0825)
Overview

It’s time to put limited mobility where it belongs — on the sidelines.

When adventure calls at a moment’s notice, Jazzy EVO 614HD empowers you to pick up and go. That’s because it comes engineered with the capabilities that push boundaries of everyday life for the heavy-duty power wheelchair class, with a 450-pound weight capacity.

Here’s how the Jazzy EVO 614HD pushes the limits.

We introduced a new 4.88 mph top speed. Compared to the average person’s walking speed of around 2 mph, that’s cheetah-fast.

With a new 3” ground clearance and new 13.75” drive wheels, you sit higher and blaze over uneven terrain like you were born to do it.
Size

Model
Jazzy® EVO 614HD
Weight Capacity 450 lbs.
Turning Radius3 22"
Width3 25.4"
Length3 40.5"
Maximum Speed2 Up to 4.88 mph
Ground Clearance3 3"
Front Wheels 6" casters
Drive Wheels 13.75" solid
Rear Wheels 6" casters
Drivetrain Two motor, in-line, HD motors
Braking System Regenerative and electro-mechanical
Suspension Type Full independent front and rear Active-Trac® (ATX) Suspension
Standard Seat Sizes High-back, memory foam
Black vinyl
18"x18"-20", 20"x18"-20", 22"x20-"-22"
Seat-to-Floor Range 22"-24"
Seat Weight(s)3 57.8 lbs
Maximum Seat Size 22"W-22"D
Power Elevating Seat NA
Standard Electronics 60A, Dynamic Linx
Battery Size(s)4 (2) NF-22
Battery Weight6 36-lbs. each
Battery Charger 5-amp, off-board
Per Charge Range2,3,5 13 miles at 450 lbs., 21.5 miles at 200 lbs.
Weight of Heaviest Piece7 125.7 lbs.(base)
Total Weight 255.5 lbs. w/ batteries and seat
HCPCS Code Group 2: Heavy-duty (K0824/K0825)
Warranty Frame: 5-year limited; Drivetrain: 13-month limited; Electronics: 13-month limited; Batteries: 13-month limited
Colors Black (matte), White (matte), Red (matte), Iceberg Blue (matte), Robin's Egg Blue (matte), Sugar Plum (matte)
